SEQUENTIAL LIGHTING

Description

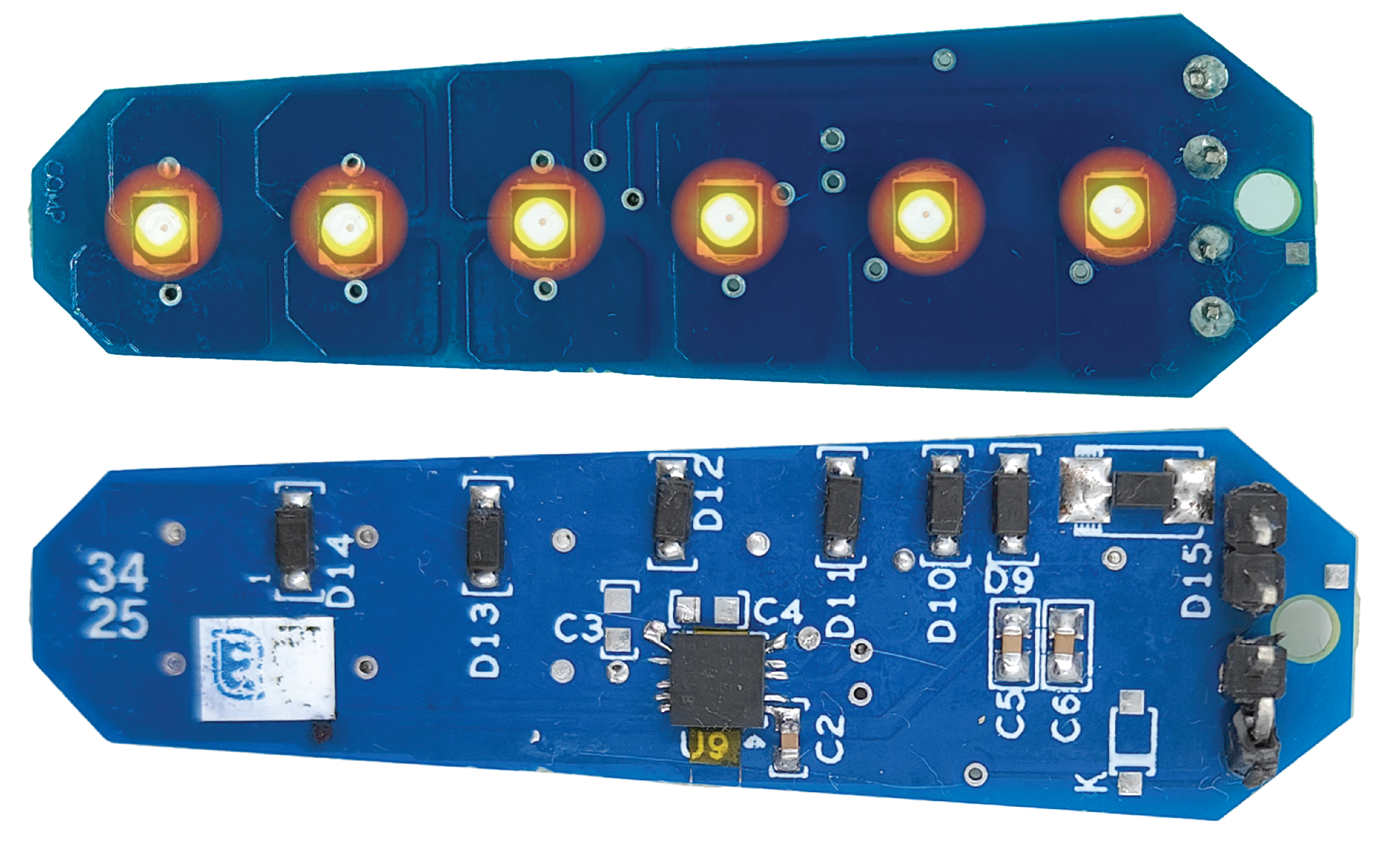

Sequential LED Indicator Demonstrated Here Is Built Around Renesas RL78-F13 Microcontroller, and Melexis MLX81115 CCR For Individual Light Control.

The MLX81115 LIN RGB slave provides a single chip solution for driving up to six LEDs via constant current sources in automotive ambient lighting applications. Every output can be programmed to a maximum current of 48 mA through the built-in Flash memory.

Features

• Simple & Robust Design.
• Operating Voltage: 10V-21V.
• LED Current Upto 200mA.
• Battery Reverse Protection.
• Sequential Time Can Be Adjustable Easily
• Production Friendly Compared To Analog Sequential To Match The Sequence Time
• No Of Sequence Can Be Added Upto 16.
• Sequential Animation Can Be Alter Easily.
• Synchronise Can Be Done For Front And Rear Indicator

Applications

• Automotive Lighting
• Safety and Warning Systems

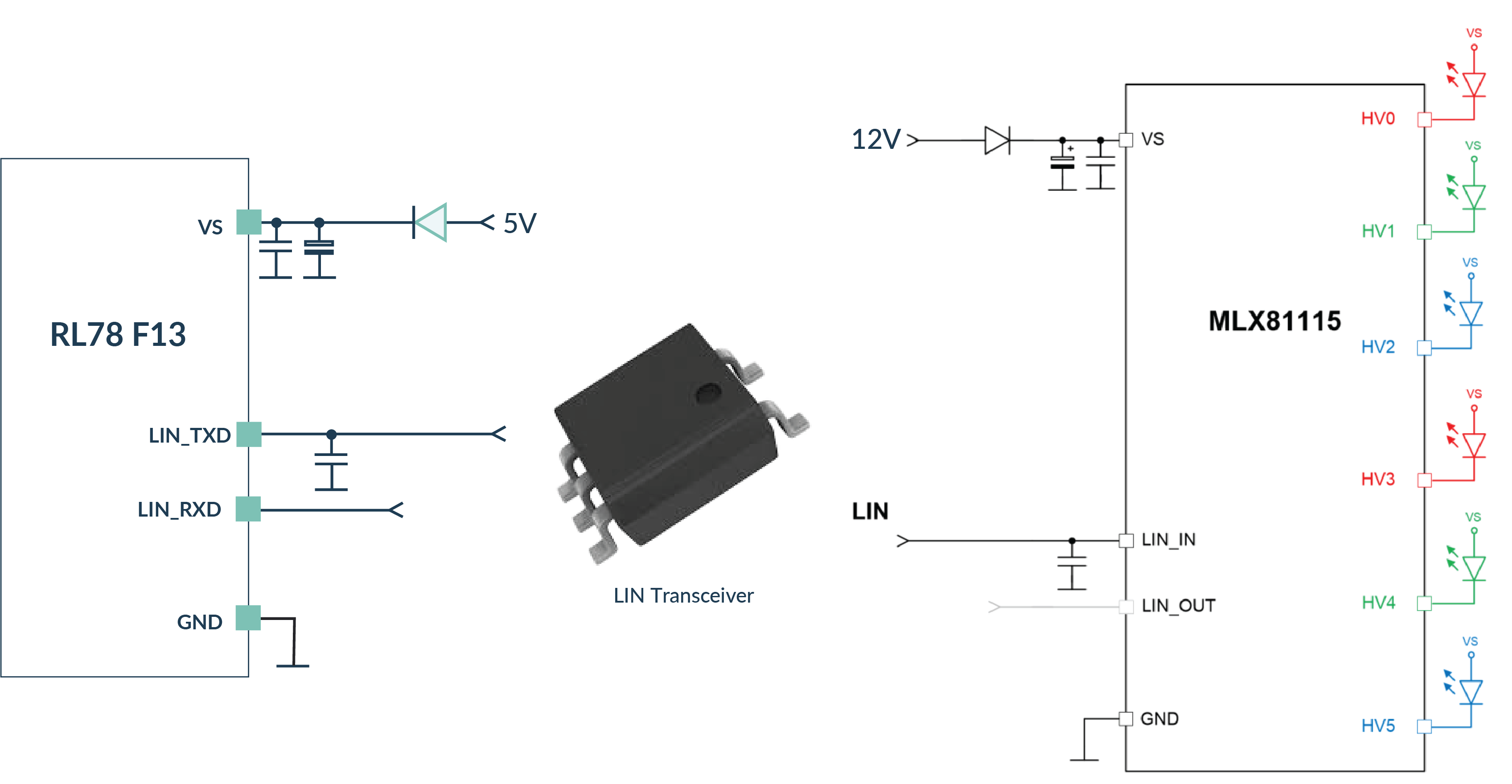

Block Diagram
