OBD TO BLE

Description

Converting An On-board Diagnostics (OBD) system to use Bluetooth Low Energy (BLE) technology for a two-wheeler involves integrating a BLE module with the existing OBD system. OBD systems in vehicles, including two-wheelers, provide diagnostic information about the vehicle's health and performance. By adding BLE connectivity, you can wirelessly access this diagnostic data using a smartphone or other compatible device.


Features

  • Dialog DA14531 Low Energy BLE5.0 module
  • Frequency: 2402/2426/2480 Mhz
  • Broadcasting Protocol: connected
  • Broadcasting interval: programmable
  • Broadcasting power: 0DBm as default, programmable
  • Antenna: PCB
  • Working Power Supply: 1.7 ~3.6V DC
  • Wireless Diagnostics
  • Trouble Code Reading
  • Maintenance Reminders
  • Vehicle Performance

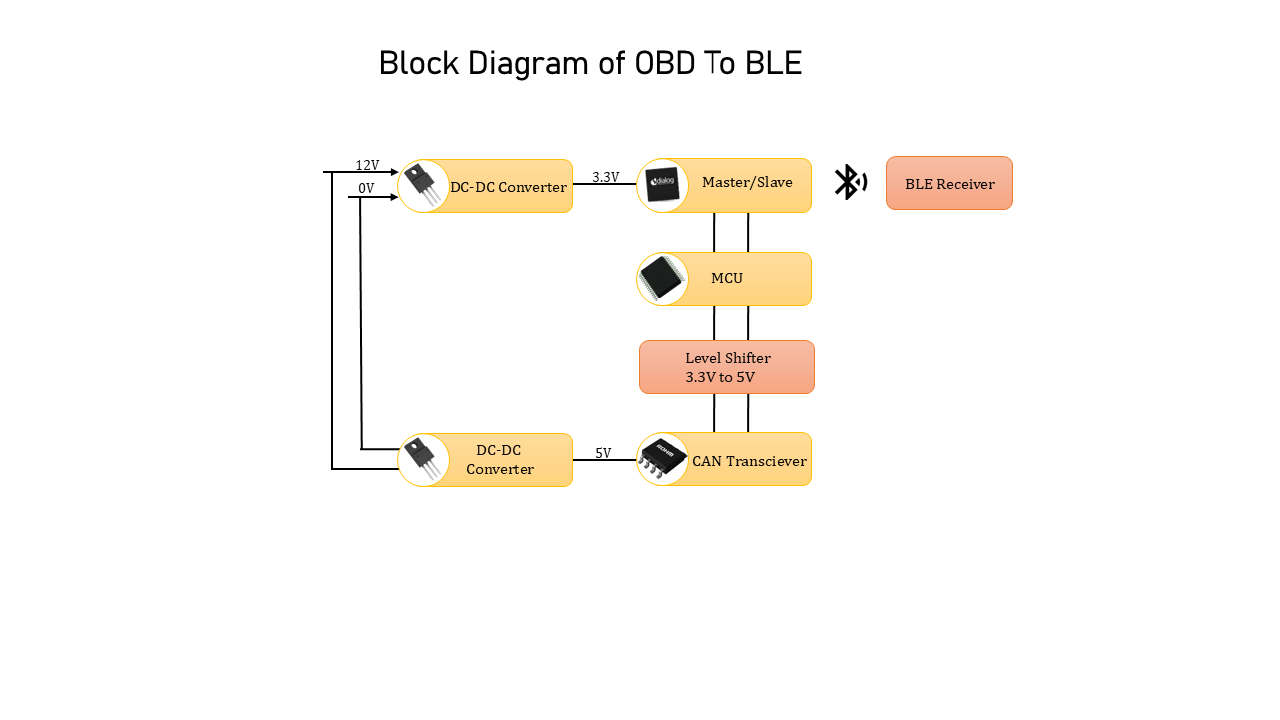

Block Diagram
