FURUNO

Description

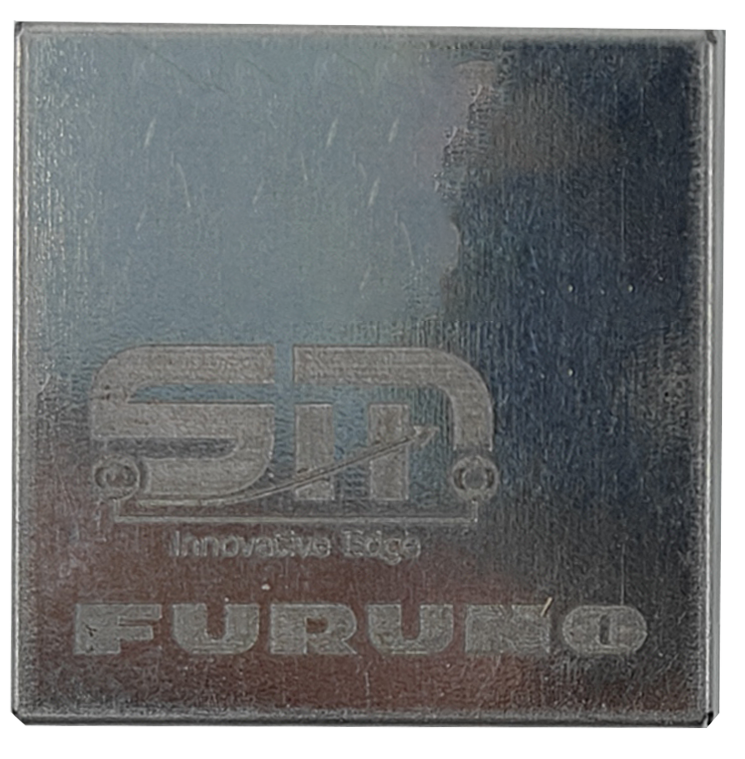

Furuno ePV9000B GNSS receiver, supporting both L1 and L5 frequency bands for robust and precise satellite signal acquisition. Whether you are operating in urban environments, open skies, or signal-challenged zones, our GNSS module ensures superior accuracy and stability. Offers unmatched precision, reliability, and a developer-friendly ecosystem to accelerate your applications.

Features

• 50cm DRMS position accuracy allows for lane-level navigation
• Extended Carrier Aiding Technology
• Dead Reckoning
• Dual-band, Multi GNSS
• Anti-Jamming, Anti-Spoofing
• Time pulse output (1PPS)
• RAW DATA output
• With eMRAM, no flash memory required
• GNSS Reception Capability GPS L1CA/L5, Galileo E1/E5a, BDS B1I*/B1C/B2a, GLONASS L1OF*, QZSS L1CA/L1CB*/L5, SBAS* L1/L5 * Enabled in the future firmware update.
• GNSS Reception: 62 channels
• Sensitivity Cold start: -147 dBm Hot start: -158 dBm Tracking: -160 dBm*
• Position Accuracy (Horizontal) 0.5 m DRMS (63%) *open sky (-130dBm)
• TTFF (Typical) Cold start: 19 s@-130dBm, BDS enabled case Hot start: 1 s@-130dBm
• 1PPS Stability 30 ns (1σ) @-130dBm, sync. to GPS time Configurable duty ratio
• Supply Voltage : 2.97 VDC to 3.63 VDC (3.3 V mode)
• Operating Temperature:

-40°C to 105°C (1.8V mode)

-40°C to 85°C (3.3V mode)

• Storage Temperature:-65°C to 150°C
• Protocol: NMEA 0183 V4.11, FEC binary, RTCM Ver.3.3
• Functions:

» Extended-Carrier Ading (Smart code noise reduction algorithm)

» Multipath Mitigation

» Anti-Jamming

» Anti-Spoofing

» Raw data output (GNSS measurements and navigation messeages, and IMU data)

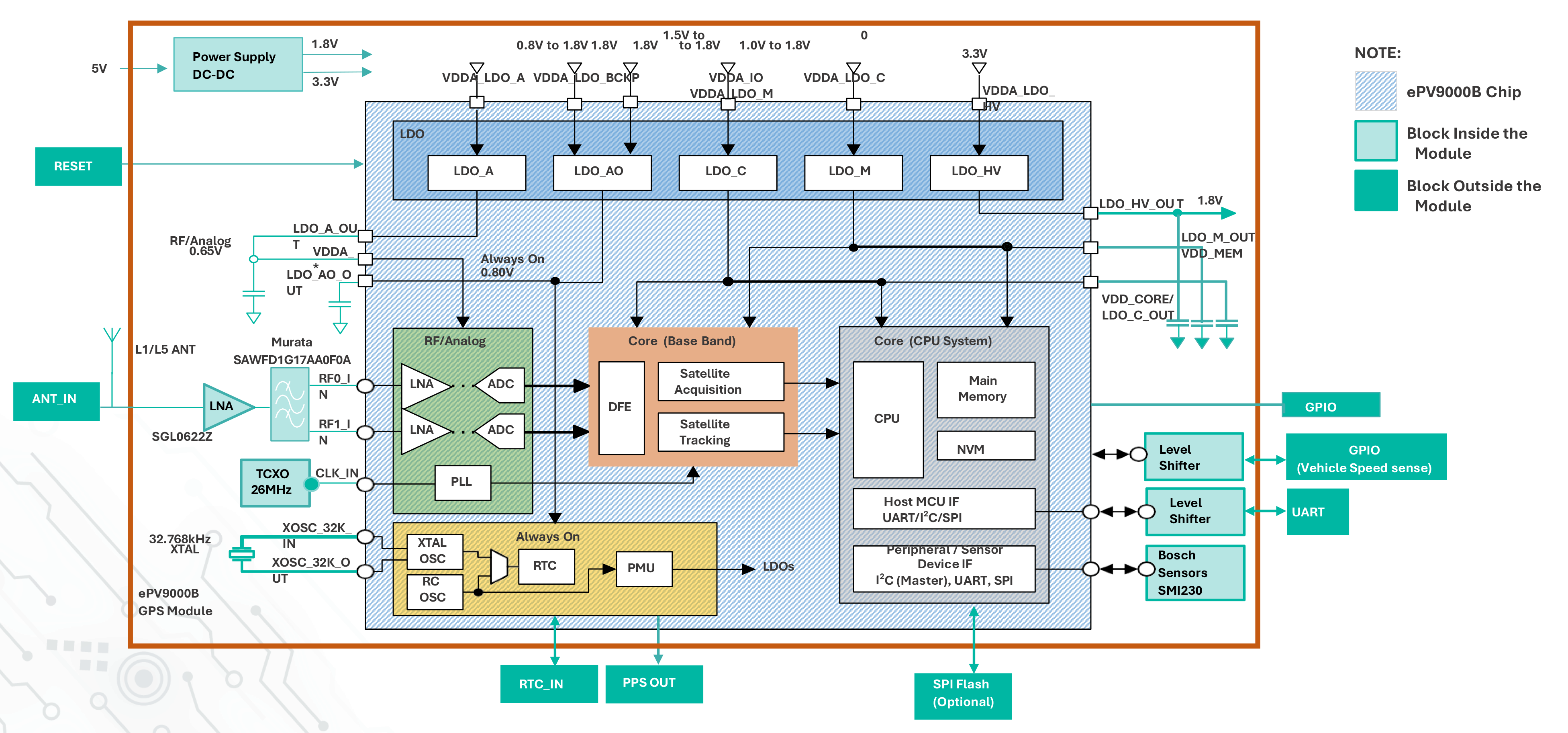

Block Diagram
